ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10.
1/2"NB TO 48"NB IN.
Seamless and Welded.
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS.

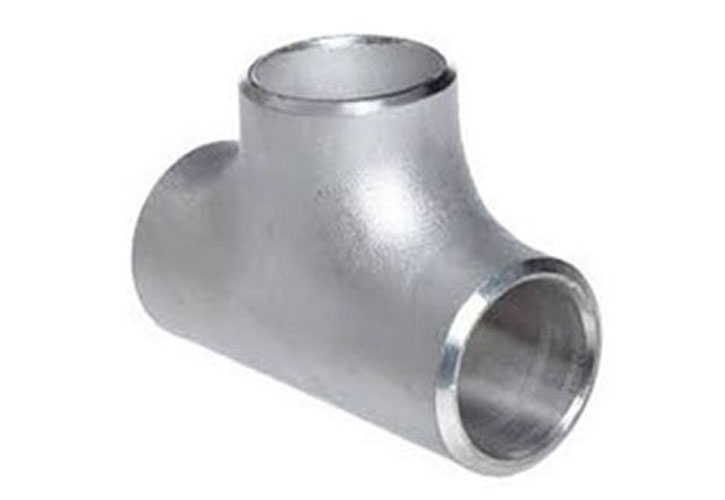

Elbow, Equal Tee, U Pipe Bend, Long & Short Stub End, Caps, Lap Joint Stub End
ASTM B366 / ASME SB366 Nickel 200, Nickel 201, Monel 400, Monel 500, Inconel 600, Inconel 601, Inconel 625, Inconel 718, Inconel 783, Inconel 690, Inconel X750, Incoloy 800/800H/800HT, Incoloy 825, Incoloy 925, Hastelloy C276, Hastelloy C22, Hastelloy C4, Hastelloy C2000, Hastelloy B2, Hastelloy B3, Hastelloy X.
Hastelloy C2000 is a highly versatile nickel-chromium-molybdenum alloy renowned for its exceptional corrosion resistance across a broad spectrum of harsh environments. Engineered to perform well in both oxidizing and reducing conditions, Hastelloy C2000 stands out due to its balanced composition, which includes significant amounts of chromium, molybdenum, and a unique addition of copper. This combination enhances its resistance to pitting, crevice corrosion, and stress corrosion cracking.
Fabrication of Hastelloy C2000 pipe fittings involves several specialized processes to maintain the alloy's exceptional corrosion resistance and mechanical properties. The alloy's balanced composition allows it to be readily formed and welded using standard techniques suitable for high-nickel alloys. During fabrication, it is crucial to perform solution annealing at approximately 1121°C (2050°F) followed by rapid quenching to ensure optimal microstructure and corrosion resistance. Welding Hastelloy C2000 requires the use of matching filler metals to preserve its integrity and prevent the introduction of impurities. Cold working may be necessary to achieve specific shapes and dimensions, and subsequent annealing can relieve any residual stresses.
Hastelloy C2000 fittings are essential in highly corrosive environments. In chemical processing, they handle aggressive acids like sulfuric and hydrochloric acids, making them perfect for reactors and piping systems. Pollution control applications use these fittings in flue gas desulfurization units due to their resistance to acidic gases. The oil and gas industry relies on them for sour gas service, while the pulp and paper sector employs them in bleach plants. Their superior resistance to pitting, crevice corrosion, and stress corrosion cracking ensures reliability and longevity in demanding conditions.
Industrial-Grade Buttweld Fittings: Tee | 45° Elbow | 90° Elbow | 180° Elbow | 1D Elbow | 1.5D Elbow | 3D Elbow | 5D Elbow | 10D Elbow | Hot Induction Bend | Piggable Bend | U Bend | Long Stub End | Short Stub End | Lap Joint Stub End | Caps
| STANDARD | UNS | WNR | JIS | BS | AFNOR | EN | GOST | OR |
|---|---|---|---|---|---|---|---|---|
| Hastelloy C2000 | N06200 | 2.4675 | NW 06200 | - | - | - | - | - |
| Alloy | Nickel (Ni) | Chromium (Cr) | Molybdenum (Mo) | Iron (Fe) | Tungsten (W) | Cobalt (Co) | Copper (Cu) | Aluminum (Al) | Titanium (Ti) | Carbon (C) | Silicon (Si) | Sulfur (S) | Phosphorus (P) | Manganese (Mn) | Boron (B) | Lead (Pb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy C2000 | Remainder | 22-24% | 15-17% | 3-5% | 1.3-1.9% | 2.5% max | 1.6-2.4% | - | - | 0.01% max | 0.08% max | 0.03% max | 0.04% max | 0.5% max | - | - |
| Alloy | Tensile Strength (MPa) | Yield Strength (0.2% offset) (MPa) | Elongation (%) | Hardness (HRB) |
|---|---|---|---|---|
| Hastelloy C2000 | 690 | 310 | 40 | HRB 89-100 |
When selecting Hastelloy C2000 BW pipe fittings, it is vital to refer to the dimensions, size, weight chart, and tolerance to ensure compatibility with your piping system. Proper selection guarantees optimal performance, safety, and longevity in corrosive environments.
